15m Truck Painting Room 2024 CE Approved Bus Spray Booth with Air Speed m/s of 0.2-0.3

Ask Lasest Price
Brand Name :	wintai
Model Number :	WT15000
Price :	$25,800.00/sets >=1 sets

Add to Cart

Product Details
Company Profile

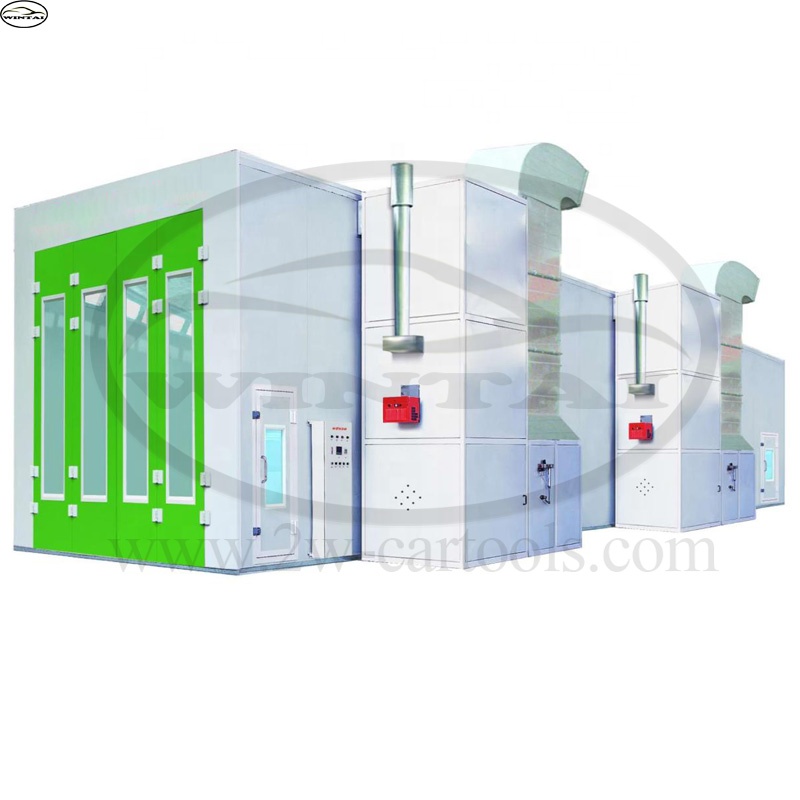

15m Truck Painting Room 2024 CE Approved Bus Spray Booth with Air Speed m/s of 0.2-0.3

Product Description

2023 new CE approved bus spray booth 15m truck painting room

Wallboard: Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional ) 75mm thickness; EPS foam Density is 14kg/m³. The Colorful steel skin boards have been HDG(hot dip galvanizing). High quality galvanized steel roof panel.
Door: 4 pcs of front doors with aluminum bordure. Size: 4000*5000(mm)(W*H). 2 pc of emergency doors 650*1800mm(W*H)/pc.
Intake Fan(2groups): 1 sets of 11kw intake fan/per group, total 2 units of 11kw intake fans. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. Air flow:64,000m3/h.
Exhaust Fan(2rgoups):1 set of 11kw exhaust fan/per group, total 2sets of 11kw exhaust fans, Air flow:64,000m3/h.
Filtering: Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The green filter on the basement plenum and exhaust fan can filter the paint and dust emission. The air cleanliness in the working environment can reach 98%.
Burner: Original Italy RIELLO RG5S diesel burner, 260,000Kcal/h per unit, total 2 units of burners and 520,000Kcal/h. Max temperature at 80°C.
Heat Exchanger(2sets): it’s made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency. The heat exchange rate reaches 85%.
LED Lighting System: Ceiling lights have 18units×4pieces of 16w LED lamps. Side light has 22units×2pieces of 16kw LED lamps. Total 116pieces of 16w LED lamps. 900 Lux.
Control System: Microcomputer control system. Cabinet type, easy to control and maintain.
Remark:
Any sizes can be customized;
3D lift is optional.
Air exhaust from two sides of spray room or pit are optional;
Drive through type door, rolling door and folding door are optional.
Air generation system on the top of spray room is optional.

15m Truck Painting Room 2024 CE Approved Bus Spray Booth with Air Speed m/s of 0.2-0.3

Specification

item	value
Type	Spray Booths
Power	24KW
External Size	15.2m Lⅹ6.7m Wⅹ5.5m H
Internal Size	15.0m Lⅹ5.0m Wⅹ5.0m H
Voltage	380V/220V/3phrase/50 or60HZ
No Load Speed	nm
Place of Origin	China
	Guangdong
Brand Name	wintai
Model Number	WT15000
Warranty	1 YEAR
External Size	15.2m L6.7m W5.5m H
Room size	15.0m L5.0m W5.0m H
Air Flow(m³/h)	60000m³
Air Speed(m/s)	0.2-0.3
Total Power(KW)	24
Power	380V/3phrase/50 or60HZ

Packing & Delivery

standard export package
