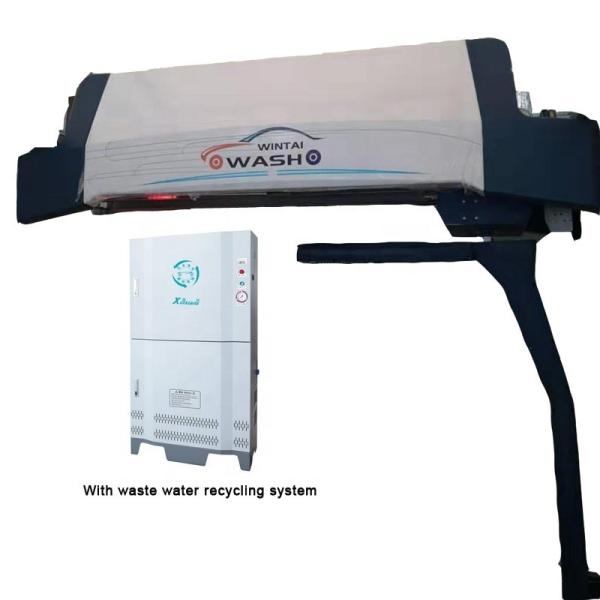

Touch free automatic car wash machine automatic car washer
Special Feature
Users can set chemical consumption automatically on touch screen
according to the dirty degree of vehicles.
Wasing Mode
Fine Mode (5 minutes/car): start--chassis/wheel rim
flushing--Colorful high foam detergent spraying--High Pressure Car
Body Flushing--Low foam detergent spraying--High pressure car body
flushing--Wax Spraying--Wax Rain--Drying
Fast Mode (2 minutes/car): start--chassis/wheel rim
flushing--Colorful high foam detergent spraying--High Pressure Car
Body Flushing--Wax Spraying--Wax Rain--Drying
1. Low foam cleaning liquid,it’s called wipe free cleaning liquid
also, containing soil loosening agent,
2. High foam cleaning liquid,it’s called magic shampoo
also,suitable for extremely dirty cars.It has car care function.
3. Colorful bubble cleaning liquid,it’s called colorful waterfall.
4. Water wax
| Item | Parameters | Function | Remark |
| Machine Size(L*W*H) | 3670mm*1330mm*1300mm | Self-parking and detecting system | yes |
| Pump Size(L*W*H) | 1280mm*740mm*600mm | Digital anti-collision system | yes |
| Chemical station size(L*W*H) | 1160mm*470mm*1350mm | All degree rotary high pressure flushing | yes |
| Max Vehicle Suitable | 6000*2500*2080mm | Chassis flushing | yes |
| Installation(L)-Frame Length | 7500mm~8000mm | Detergent spraying | yes |
| Installation(W) | 3350mm~3686mm | Colorful/high foam detergent spraying | yes |
| Installation(H) | 3300mm-3400mm | Wax spraying system | yes |
| Total Weight/volume | ≥3300kgs/≥8.5m³ | Built-in automatic drying system | yes |
| Power Requirement | 380V/25KW or other voltage | LED indication light guide system | yes |
| Air Switch | 100A | Operation permission setting function | yes |
| Total Power | 13KW/24.5KW | Self-service payment system | yes |
| Water Pump Motor Power | 18.5KW/pressure 130Bar,10-130Bar Adjustable,Simens | Voice Prompts function | yes |
| Fan Motor Power | 5.5KW/set x4sets | Car washing counting function | yes |
| Horizontal Motor Power | 0.55KW asynchronous frequency conversion speed regulation | Antifreeze system | yes |
| Cross Motor Power | 1KW digital servo motor | Oil-free system | yes |
| Rotation motor Power | 1KW digital servo motor | Equal pressure anti-blocking nozzle | yes |
| Chemical Proportion Motor Power | 0.37KW | Safe alarm system | yes |
| Central Processing unit PLC | Industrial intelligent digital control system | Automatic Standby function | yes |
| Drive system | variable frequency speed control+digital servo driver | | |
| Inspection system | Intelligent three-dimensional detection system | | |
| Running speed | 27 seconds/360 degree one circle | | |
| Water consumption | 65-200L/car | Colorful Lights(like above right picture) | Optional |
| Electricity consumption | 0.4-1KW.H/car | Water Recycle System | Optional |
Company Profile
Automatic car washing machine-Guangzhou Wintai Cartools Co.,Ltd is
a professional manufacturer of car washing machine equipment
established in 2013, integrating R&D, production, sales and
service. WINTAI focuses on high –end car washing machine
manufacturing and design, and strives to provide consumers with
higher quality car washing machine equipment.
The workshop is located in Xi'an and has an export office in
Guangzhou. Xi'an is an international transportation hub with
strategic advantages for export transportation.
WINTAI specializes in the research and development of fully
automatic computer car wash equipment. Based on the absorption of
advanced technology from the same industry in the world, WINTAI
adopts a unique design concept and combines the domestic car wash
market conditions. After years of continuous research, testing and
testing, and further innovation, we have developed a new generation
of stable of T series surrounding high-pressure non-contact
wipe-free automatic computer car wash system .It’s cost-effective,
reliable and with stable performance. The original series of “L”
type jet cleaning design mode is extremely humanized, which can
better clean the surface of the car body at a large angle. The
appearance is simple and applicable, breaking the drawbacks of the
old huge equipment, heavy and can not be installed indoors, so that
customers can obtain Top Wash, Top Suitable, Top stable and Top
cost-effective car wash system.
Among them, T9 and WT-390 are the leading products of our company.
Both T9 and WT-390 have self-service payment systems. This is a
further elimination of labor compared to the traditional car wash
industry, and to make up for the short-term business hours. 24h
all-day business can solve the problem of car owners car wash time,
but also create more benefits for investors.
WT-390 is more inclined to meet the basic needs of the current
market. It is a suitable choice for the car wash industry or the
general washing station. The T9 has a larger flushing pressure, the
maximum flushing pressure can reach 130bar. It’s with 4pcs of 5.5kw
fans, and the surrounding flushing speed reaches 27 seconds in 360
degrees around the car, its washing speed is faster. Secondly T9
has more washing modes compared to the general car washing machine.
The car owner can choose different modes according to actual needs.
In this way, the owners don’t need consider if the car has to be
washed due to some parts of car are clear , this will make car
washing frequency more and bring more profit for investors.
In short, both T9 and WT-390 can meet export requirements. We also
export these products to Malaysia, Armenia, Kazakhstan, Russia,
Nigeria and the vast European countries.
