4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release

Ask Lasest Price
Brand Name :	wintai
Model Number :	7440E
Supply Ability :	1000 Set/Sets per Month
Price :	$2,418.00/sets >=2 sets
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T
Delivery Time :	25

Add to Cart

Product Details
Company Profile

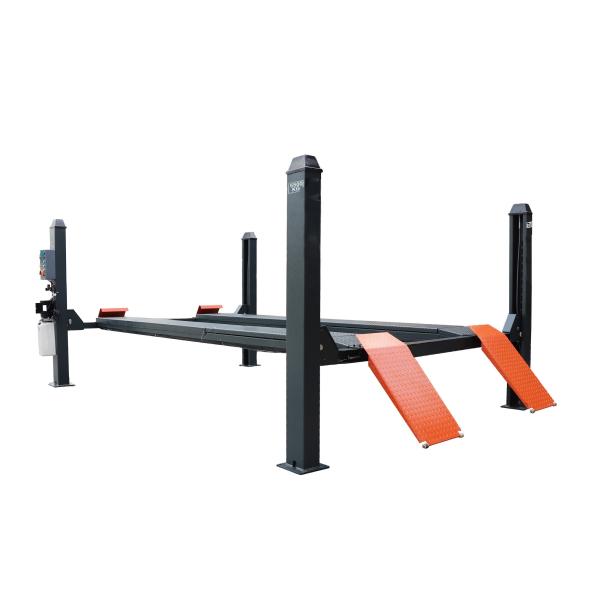

4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release

Product Description

CE approved four post car lift for wheel alignment electro-air safety lock release 4 post wheel alignment lift

4 Ton Wheel Alignment Portable Car Lift With Electro Air Safety Lock Release

Specification

item	value
Design	Four Post
Type	Four Cylinder Hydraulic Lift
Lifting Capacity	4000kgs
Brand Name	wintai
Model Number	7440E
Warranty	12Months
lifting capacity	4,000kgs (9,000LBS)
lifting time	≤60S
Overall Height	2120mm (83 7/16")
Lifting Height	1770mm (69 11/16")
Overall Length (Inc.Ramps)	5512mm (217")
Overall Length (No Ramps)	4600mm (181 1/8")
Overall Width	3350mm (131 7/8")
Width Between Columns	3050mm (120 3/4")
gross weight	1050kgs (2,315LBS)

* 4,000Kg (9,000LBS.) lifting capacity.
* Electro-air control and 24V low voltage operation system.
* Reliable mechanical self-lock and air-drived safety lock release.
* Max height limit switch to ensure the cylinders work within the stroke.
* Skid proof diamond and low-profile platforms.
* Dual safety device: In case the primary safety locks are out of operation, the lift would also be locked automatically by the second safety device.
Optional manual or pneumatic rolling jack.

* OEM/ODM service can be offered
* Lift color can be offered as customer request.
* Optional manual or pneumatic rolling jack.

1. The minimum ground height is 180mm(7 1/16”), which can effectively avoid the phenomenon of low chassis car hanging chassis.
2. The upper end of the column is suspended and the lower end is adjustable (adjustable range is 40mm), which can effectively ensure the basic level of the two runways in the locked state and is less affected by ground factors.
3. There are double insurance of manual safety and cable breaking safety inside the cross beam, and the reset device adopts pressure spring and guide bar structure, even if the spring is broken due to the reason of guide bar, it can still be
effective to ensure the safety of use.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
