Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment

Ask Lasest Price
Brand Name :	WINTAI
Model Number :	WTQ350A
Supply Ability :	1000 Set/Sets per Month
Price :	$4,700.00/sets 1-9 sets
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T
Delivery Time :	15

Add to Cart

Product Details
Company Profile

Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment

Product Description

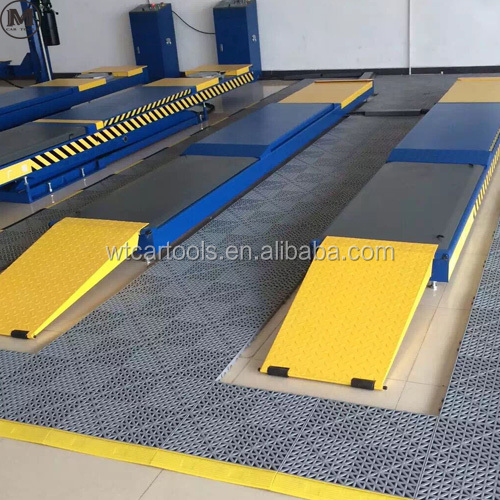

Inground type hydraulic wheel alignment scissor car lift ,minimum height 210mm
Special design for wheel aligner system, no need dig basement.

Parameter:
Lifting capacity 7716Lbs/3500kg
Overall lifting height 66”/1670mm
Min height 8.3"/210mm
Overall length 177”/4500mm
Platform width 25"/640mm
Distance between platforms 33.5”/850mm
Capacity motor 3KW
Lifting time for sub jack 20seconds
Lifting time for main jack 30seconds
Motor voltage 220V or 380V
Frequency 50Hz or 60Hz
Phase 1ph or 3ph
Net weight 4080Lbs/1850kgs

Customized Inground Type Portable Car Lift Hydraulic With Wheel Alignment

Specification

item	value
Design	SCISSOR
Type	Double Cylinder Hydraulic Lift
Lifting Capacity	7716Lbs/3500kg
Place of Origin	China
	Guangdong
Brand Name	WINTAI
Model Number	WTQ350A
Warranty	1Years
Type	Scissor
Lifting Capacity	3.5tons
Max lifting height	66"/1670mm
lifting height of Secondary Jack	17"/430mm
Platform length	165"/4500mm
Platform width	25"/640mm
Motor voltage	110V/220V/380V
Frequency	50Hz or 60Hz
Phase	1ph or 3ph
Lifting time of main jack	30seconds

Packing & Delivery

standard export package
