Product Application

Automatic tire repairing machine/tire removal tool 10" to 26"

Free crowbar car tyre changer tire mounting machine automatic

tyre changing machine ,tyre removal machine

Special designs make maintenance easier

Applicable to small and medium car, support explosion-proof tire, low/flat tire and tubeless tire

Features:

1. support 10" to 26" rims,

2. Wonder motor, aluminum shelf and copper core,

3. Super big cyliner(air tank),

4. Special triangle plate design at many joint points make machine endurable.

5. 3mm thickness steel as body processed by CNC machine with accurate size.

6. Top quality of pressure gauge.

7. Double lock at dismantle head

8. Free crowbar tire dismantling head

9. Tilt-back vertical column

Main Features

Standard configuration:
Help 5 auxiliary pneumatic lever arm means
Double and single crank pressure tire design, tire fitting job Multi-assisted pressure tires. The lower plate, in the demolition process can be assisted tire tire lifts. One lifting slide design, with fine-tuning to ensure smooth lifting and stability, more efficient and easier to use.
Backward curved arms designed ,so the top hub chuck can expand more room for operation and avoid accidental injury when clamping hub.
The trapezoid column base and housing overall box welding design, fully ensure the high intensity
Operation under the bearing structure, the overall stability and reliability.
Using 3mm thickness steel plate combined cabinet, firm structure, Weld concealment, beautiful appearance.
High strength tire changer head, adapt to strong job, a small amount of deformation, longer service life.
Foot pneumatic valve piston rod assembly is made of pure steel, so the surface is more smooth and corrosion
resistance, longer life. Drawer control assembly, simple structure , fast and easy maintenance.
Best quality all-aluminum copper motor with advantages of faster heat dissipation, low loss, high power.
180mm all-aluminum double-inlet tread separation cylinder, fully sealed design, low pressure supported, longer service life.
Thickness is 15 mm wheel chuck parts, with the function of claw size fine adjustment, claw can precise (fine) control at any position, convenient for clamp the wheel, to avoid accidentally injure

1. TWO speed motor is optional

2. Tire lifting device is optional

Please note our tire changer is much heavier than market. We use air tanks, motors, steel plates much better than thicker

Big Clamps

clamps suitable for 10"-26 rims, much bigger than other suppliers,with plastic protection

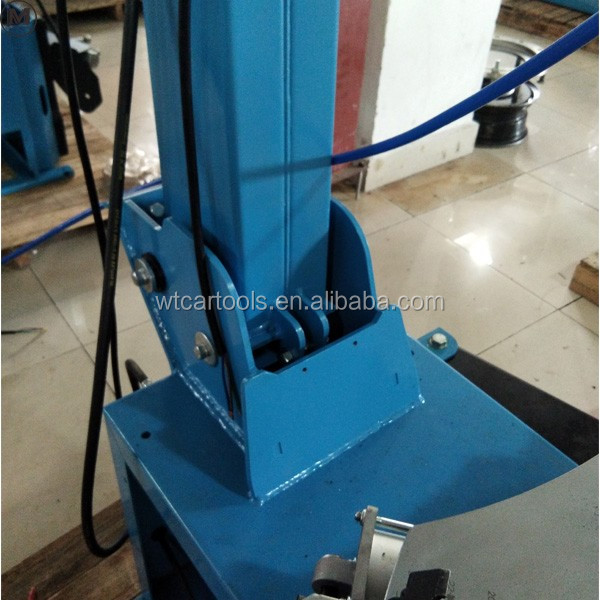

Welded Tilting Back Column

Tilting-back vertical column

Welded together, much stronger

Tire Shovel

Even some famous brand tire changers use tire shovel that can rotate only two direction. We use tire shovel can rotate from multi directions.

Super Big of Cyliner( Air Tank)

Super big of air tank up to 180mm

in market 170mm usually

Drawer Type of Steps

Drawer type steps in STAINLESS STEEL, NOT PLASTIC.

Drawer type, easier for maintenance. You don't need move the whole cover to examine the machine.

Special design triangle plate

Triangle plates are placed at many joint points to make machine more endurable

Wonder brand motor

We don't use motor with iron shelf and aluminum core.

We use famous brand "WONDER" with aluminum shelf and copper core.

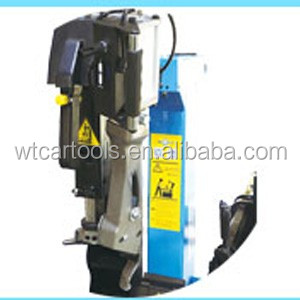

Free crowbar dismantling head

leverless, free crowbar dismantling head
