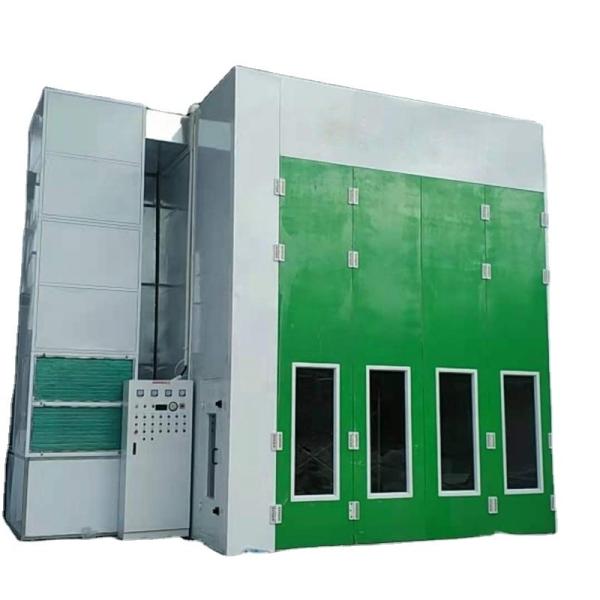

30m Industrial Spray Paint Booth for Train Bus Truck 2024 CE Approved and Customizable

Below is specification of 30m painting room:

Wallboard:

thickness: 75mm, Colorful steel board 0.476mm,EPS (epispastics polystyrene) inside(EPS ,14kg/m³.Galvanized steel roof panel,

Basement: dig pit or exhaust air from side wall

Door: Strong ability of anti-rust,with special rigid frame, or electric rolling door,

Air intake system(5sets): each set consists of 2x7.5KW intake fan,total 10 units intake fans.full copper core. air flow of each set is 40000m3/h,total 400,000m3.5pcs air dampers.

Air Exhaust system(5sets): each set consists of 1x15KW exhaust fan,full copper core, total 5 units exhaust fans.

Heating System(5sets): each set consists of 1unit Italy Riello RG5S diesel burner or RS5 gas burner,total 5units,260000kcal/h each unit, total 1300000kcal/h.

Heat Exchanger: 5sets,

Lighting System: Ceiling lights: 40unitsx4pcs of 18W LED lamps ,160pcs total,900LUX,

Side lights: 44unitsx4pcs of 18w LED lamps, 176pcs total, 900LUX,

Air Purification:

Primary filter : woven cotton filter bag, G3 grade,

Ceiling filter : 600g/m2, F5 grade,

Floor filter: fiberglass,

Exhaust filter: active carbon filter bag

3D LIFT(optional): 3D car lift is supplementary equipment that used in automobiles, trains and otherlarge or medium-sized work piece. It has high rigidity, stability, rational layout, easyoperation, operation of safe and reliable etc. It is the most ideal lifting equipment forreduce the labor intensity and improve work efficiency.

Sizes:
