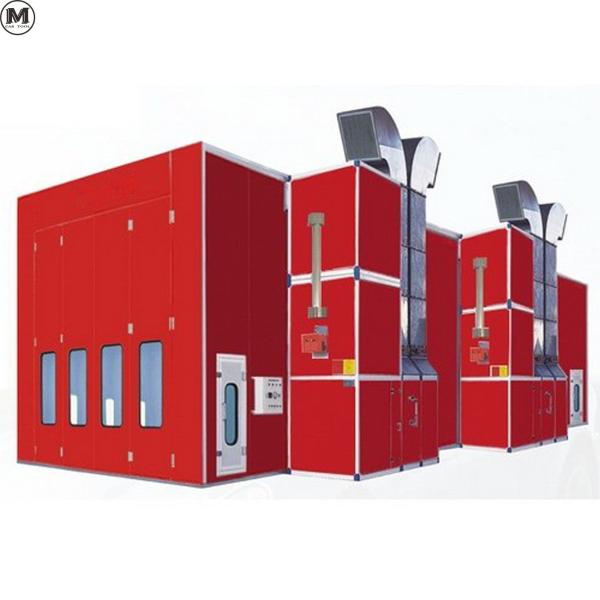

Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans

Diesel Burner Spray Paint Booth for Bus Truck and 110V/220V/380V Voltage Manufacturing

Product Description

WT15000 High-efficient diesel burner car bus truck spray paint booth:

Wallboard: Fire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional ) 75mm thickness; EPS foam Density is 14kg/m³. The Colorful steel skin boards have been HDG(hot dip galvanizing). High quality galvanized steel roof panel.
Door: 4 pcs of front doors with aluminum bordure. Size: 4000*4500(mm)(W*H). 2 pc of emergency doors 800*1800mm(W*H)/pc.
Intake Fan(2groups): 1 sets of 11kw intake fan/per group, total 2 units of 11kw intake fans. BELIMO 20N electric damper. Siemens technology production, large air volume and low noise. Air flow:64,000m3/h.
Exhaust Fan(2rgoups):1 set of 11kw exhaust fan/per group, total 2sets of 11kw exhaust fans, Air flow:64,000m3/h.
Filtering: Multilayer filtering structure. The primary filter can capture granules larger than10μm. Ceiling filter capture
granules bigger than 5μm. The green filter on the basement plenum and exhaust fan can filter the paint and dust emission. The air cleanliness in the working environment can reach 98%.
Burner: Original Italy RIELLO RG5S diesel burner, 260,000Kcal/h per unit, total 2 units of burners and 520,000Kcal/h. Max
temperature at 80°C.
Heat Exchanger(2sets): it’s made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency. The heat exchange rate reaches 85%.
LED Lighting System: Ceiling lights have 18units×4pieces of 16w LED lamps. Side light has 22units×2pieces of 16kw LED lamps. Total 116pieces of 16w LED lamps. 900 Lux.
Control System: Microcomputer control system. Cabinet type, easy to control and maintain.

Remark:
Any sizes can be customized;
3D lift is optional.
Air exhaust from two sides of spray room or pit are optional;
Drive through type door, rolling door and folding door are optional.
Air generation system on the top of spray room is optional.

Diesel Burner Truck Spray Booth 220V 39KW With LED Light And 11KW Fans

Specification

item	value
Type	Spray Booths
Power	39KW
External Size	1515067005600mm
Internal Size	1500050005000mm
Voltage	110V/220V/ 380V
Disc Dia.	NM
No Load Speed	NM
Place of Origin	China
	Guangdong
Brand Name	WINTAI
Model Number	WT15000
Warranty	1 year
Type	Spray Booths
Power	39KW
No Load Speed	NM
Model Number	WT15000
Color	Red,Orange,White,Blue
Light	LED
Basement	Pits or no basement
Ceiling Filter	F5/EU5/600G
Exhaust Fan	2 sets of 11KW fans
Suitable vehicle	Bus,truck

Packing & Delivery

standard export package
