8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume

Ask Lasest Price
Brand Name :	WINTAI
Model Number :	WT-8F
Supply Ability :	2000 Set/Sets per Month
Price :	$575.00/sets 1-199 sets
Certification :	CE
Payment Terms :	L/C, D/A, D/P, T/T
Delivery Time :	15

Add to Cart

Product Details
Company Profile

8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume

Product Description

8 Cylinders Fuel Injector cleaner and tester machine
Technical Characteristics
·Appearance size: 480mm(width)´500mm(depth)´460mm(height)
· Weight: 42 kg
·Temperature Scope of Operation:-10℃~+40℃
· Work Voltage 220 Volts AC 50 Hz.
· Test Liquid Tank Volume: 4L
· Testing Tube Volume: 120 ml
·Ultrasonic Frequency: 25 kHz
·Ultrasonic Power: 100W
· Maximum Testing Number of Cylinder: 8
·Rotation Speed: 0~9950 r/min step 50 r/min
· Pulse Duration: 1~20 ms step 0.1 ms
·Injection Number of Times: 0~10000 step 50
·Injection Time: 0~600sec step 1 sec
· Oil Pressure: 0~640kpa(6.5kg/cm2)±9.8kpa(0.1kg/cm2) (adjustable) For ultrasonic diagnostic and cleaning of injectors

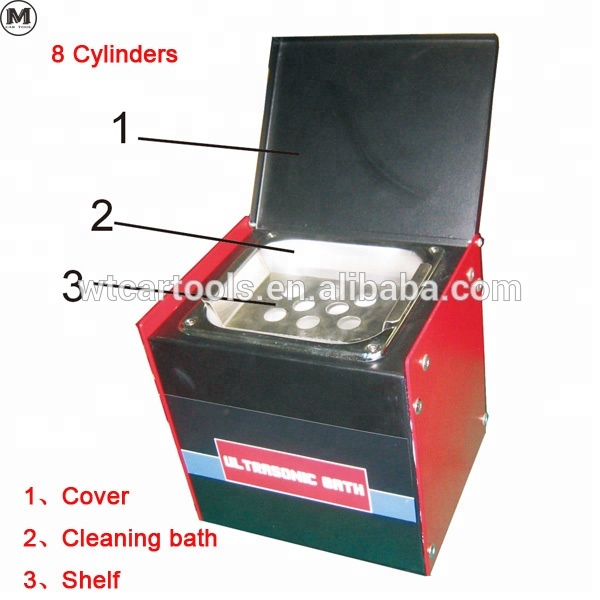

· 100 Watts /25KHz ultrasonic diagnostic and cleaning of injectors, with capacity of stainless steel tank for 1 liter (8 liters
available as optional).

Function:
· Perform diagnostic of Flow/Equalization, leak tightness, Injection Visualization, cleaning and Reverse washing .
· Includes cables and adaptors for connection of multi-point injectors and CIS injectors
· Micro processed equipment, totally programmable.
· Includes high pressure pump for test liquid with filter.
· Includes manometer of 0 – 6.5 Bar for test pressure reading.
· Electrical valve for test liquid emptying from glass tube
· Engine chamber cleaning without disassembly. (Available as optional)

8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume

Specification

item	value
Type	injector test and clean
Voltage	V
Power	W
Applicable Models	universal
Combination	SDK
Place of Origin	China
	Guangdong
Brand Name	WINTAI
Model Number	WT-8F
Warranty	1Years
size	480mm(width)500mm(depth)460mm(height)
Weight	42kgs
Test Liquid Tank Volume	4L
Testing Tube Volume	120 ml
Ultrasonic Frequency	25 kHz
Ultrasonic Power	100W
Maximum Testing Number of Cylinder	8
Rotation Speed	0~9950 r/min
Pulse Duration	1~20 m
Injection Number of Times	0~10000
