High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function

Product Description

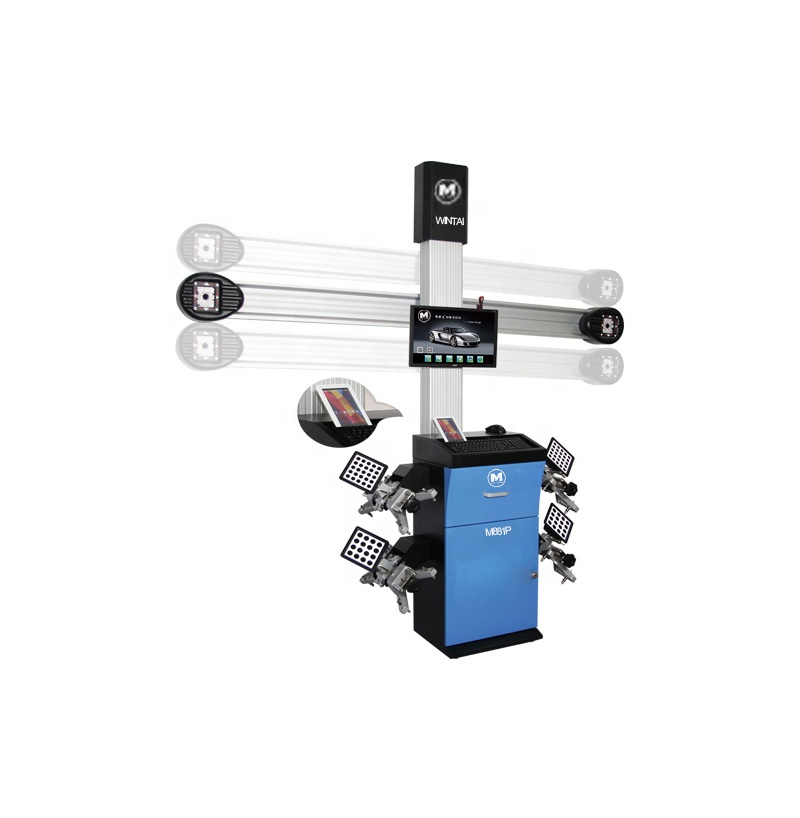

WINTAI M881P Guangzhou 3D wheel aligner system with auto tracking function
Feature:
1. Chinese Windows OS, operation process can be easily guided by "Next step" instruction.
2. Exceed 20,000 database around the world and with a lifetime update service.
3. Repeat measurement accuracy is ±0.03,which be a world's leading level.
4. Measurement Angle: Toe, Camber, Caster, S.A.I, thrust angle, Setback angle, Max turning angle, Wheel tread, Wheel base, Wheel rolling radius.
5. Android cell phone and laptop are supported to show the vehicle measurement data, more convenient for operator.
6. Humanized software design, animation video can be used to help technician more quickly complete the operation.
7. Ultra-low chassis and refit vehicle—Volks Wagen and Audi, XLWB and with ESP function vehicle are also can be measured.
8. Secondary jack-up function, which can be used to more conveniently help technician adjust Camber.

Standard configuration:
Options: The wheel alignment software could be installed in the Table PC with Android system. Clients can long-distance operate the wheel alignment measurement through Bluetooth.
. Parking assistant camera function: independent web camera can guide the vehicle pack in the specific location.
. Apply high strength plastic target, which is lighter, thinner and stronger.

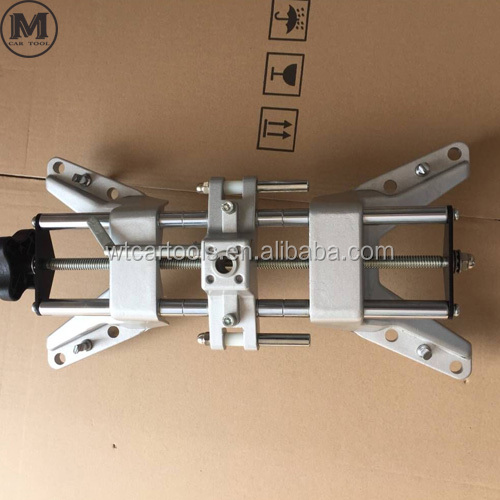

. Fast installation, suitable for all rims between 12”-23” . Double chuck, which can install both on iron and aluminum wheel hub.
. 5 million high definition camera: it can also assure accurate alignment measurement when target plates get smaller.Intelligent
LED navigation system: the operator doesn’t need to check the screen for the instruction of intelligent LED navigation system and can easily complete wheel alignment operation.

According to weight of camera beam, the lifting pillar equipped with two pieces of metal counter weight, which can efficiently lower the motor working pressure, thus prolonging the working life. Equipped with low-speed motor aluminum alloy pole, which can achieve stable and unshakable lifting speed. Microcomputer control box support both hand and remote control operation. It can automatically track vehicle’s packing position according to the lift height during operation. Adjusting the height of camera beam to the best shooting position to make sure accurate measurement. Technical parameters:

High Efficiency Automotive Alignment Machine WINTAI M881P With Auto Tracking Function

Specification

item	value
Power	p
Power Supply	110v/220v
Balancing Speed	nm
Max. Wheel Weight	80kg
Place of Origin	China
	Guangdong
Brand Name	WINTAI
Model Number	M881P
Warranty	1Years
Type	3D
Camera	2pcs 5 Mega Pixels
Language	Global Multi-language
Screen	22inch
Computer	Lenovo
Suitable rims	12"-23"
database	Exceed 20,000
Keywords	3D wheel aligner
Automatic tracking	yes
Dual screen	optional

Packing & Delivery

standard export package
