16KW LPG Burner Outdoor Automotive Paint Booth 380V With 24000 Air Flow

Ask Lasest Price
Brand Name :	WINTAI
Model Number :	WW0802
Certification :	ce
Price :	$7,998.00/sets >=1 sets
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	100 sets/month
Delivery Time :	25

Add to Cart

Product Details
Company Profile

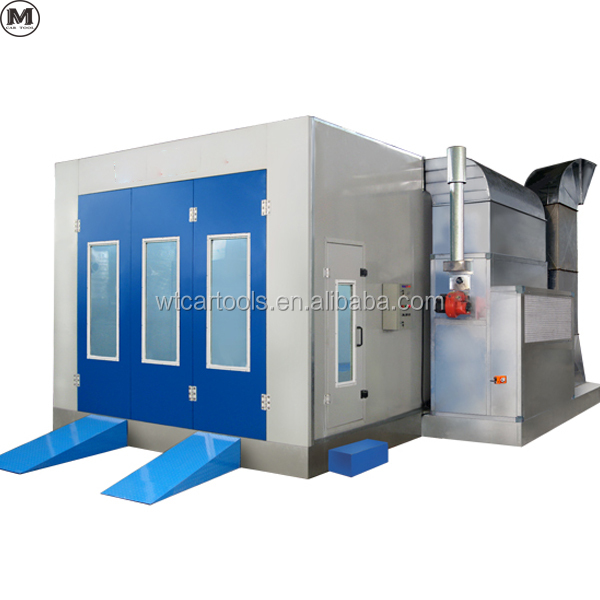

16KW LPG Burner Outdoor Automotive Paint Booth 380V With 24000 Air Flow

16KW LPG Car Paint Spraying Booth/Baking Oven/Paint Drying Oven with 220V 380V Voltage

Product Description

LPG Car Paint Spraying Booth/Baking Oven/Paint Drying Oven

External Size (m) 7x5.3x3.4

Internal Size (m) 6.9x3.9x2.7

Air Flow (m3/h) 20000

Air Speed (m/s) 0.25(no load),

Power (kw) 12
Vehicle Suited Saloon Car Jeep

1. Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. colorful steel board outside, Galvanized steel as roof panel.

2. Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.

3. Door: 3 pcs of luxury sheet metal front doors . Size: 3000mm(w) x
2650mm(h). 1 pc of emergency door.

4. Air Circulation System: 1pc of 5.5KW European type intake fan, 1pc of 5.5KW European type exhaust fan. BELIMO 20N electric damper.

5. Burner: Italy Riello FS20/G20 burner, Max. temperature at 80.C.

6. Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%. 7. Lighting System: Ceiling light has 24 pcs of 18w LED lamps. Side light is optional ,

8. Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

9. Pollution Control System: Multi-layer fiberglass filter

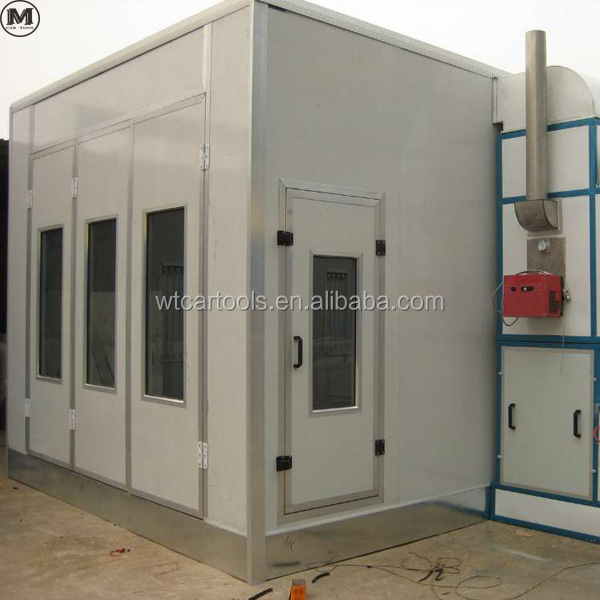

16KW LPG Burner Outdoor Automotive Paint Booth 380V With 24000 Air Flow

Specification

item	value
Type	Spray Booths
Power	16KW
External Size	700054503350mm
Internal Size	690039002650mm
Voltage	220V/380V
Disc Dia.	NM
No Load Speed	NM
Place of Origin	China
	Guangdong
Brand Name	WINTAI
Model Number	WW0802
Warranty	1 year
Certification	ce
Color	red,white, orange,blue
Wall	50mm
Heating System	diesel/gas/LPG burner
External Size	700054503350mm
Internal Size	690039002650mm
Air Flow	24000
Air Speed	0.3-0.5
Power	16KW
Vehicle Suited	Saloon Car Jeep

Packing & Delivery

standard export package
