    Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height

    Ask Lasest Price
    Brand Name : wintai
    Model Number : 440D
    Supply Ability : 1000 Set/Sets per Month
    Price : $2,450.00/sets >=1 sets
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T
    Delivery Time : 15
    • Product Details
    • Company Profile

    Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height

    440D 4 POST CAR LIFT Pass CE 6T static test and 4.6T dynamic test.

    Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height


    Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height

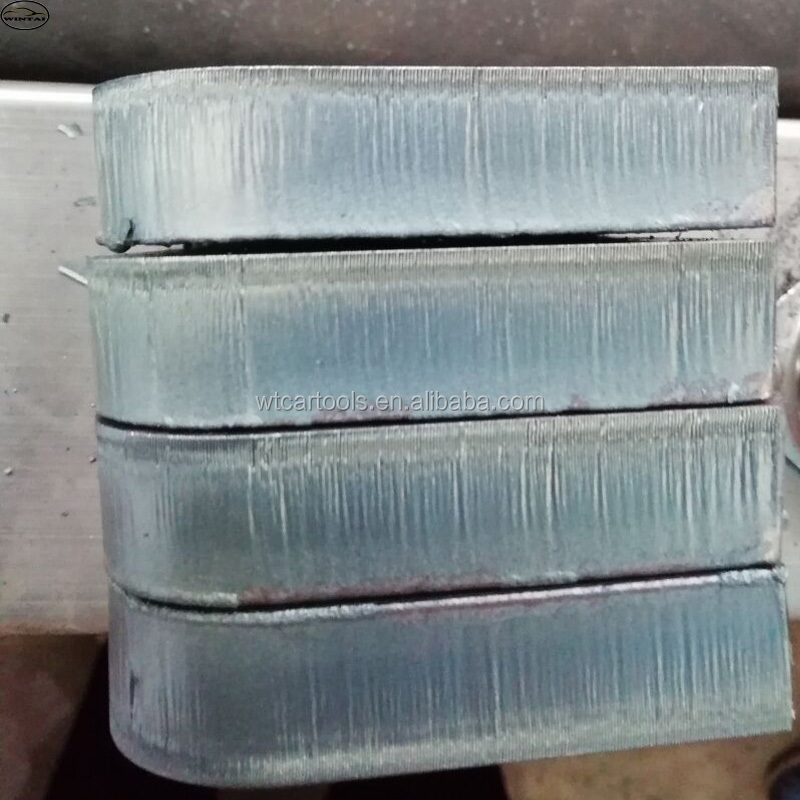

    Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.

    Japanese oil sealing elements, overload protection, international brand oil pipe.

    Direct driven by twin cylinders with safety steel wire as synchronization.

    Polymer wear-resistance slider

    Single side control both sides unlock safety, arm locks with tooth type ratchet, multi-safety device, more reliable.

    Gantry type, no obstruction on the floor.

    Roof protection safety device, automatic arm lock by built in ratchet tooth.

    Shot blasting and high temperature baking powder coated surface finish.

    Pass CE 6T static test and 4.6T dynamic test.

    Parameter:

    Model

    440D

    455D

    Lifting Capacity

    4.0T

    5.5T

    Min Height

    210mm

    210mm

    Lifting Height

    1750mm

    1750mm

    Capacity of Secondary Jack

    2000kgs

    3000kgs

    Lifting Height of secondary jack

    480mm

    480mm

    Motor Power

    2.2KW

    2.2KW

    Voltage

    220V/380V

    220V/380V

    Total Height

    2050mm

    2450mm

    Inner Width

    2830mm

    2920mm

    Machine Dimension

    4720x3164mm

    6152x3385mm


    Hydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting HeightHydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting HeightHydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting HeightHydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting HeightHydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting HeightHydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting HeightHydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting HeightHydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting HeightHydraulic Car Ramp with 2.2KW Motor Power and 480mm Secondary Jack Lifting Height
